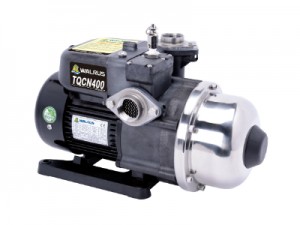

This TQCN series are designed for hot water supply (up to +90C) and pressure boosting in residential and commercial applications. They are suitable for solar energy hot water system or other types of hot water systems.


1. The TQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

2. Compact design and quiet operation make the TQCN series suitable for many applications.

3. The TQCN is constructed from the top quality corrosion resistant materials.

4. The motor has built-in thermal overload to protect against high operating temperatures and over current.

5. The TQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

6. Relief value will automatically release the pressure when the TQCN full system pressure exceeds 5kg/cm².
