AC DRIVE 0.75KW IP66
Optidrive E3 Features
Innovative technology, reliability, robustness and ease of use in a range of compact IP20 & IP66 enclosures.
Sensorless Vector Control for all Motor Types
Precise and reliable control for IE2, IE3 & IE4 motors.
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
Internal Category C1 EMC Filter
An internal filter in every Optidrive E3 saves cost and time for installation.
Cat C1 according to EN61800-3:2004
Switch modes at the touch of a button to
optimise Optidrive E3 for your application
Industrial mode optimises Optidrive E3 for load characteristics of typical industrial applications.
Pump mode makes energy efficient pump control easier than ever.
- Dosing Pumps
- Borehole Pumps
- Transfer Pumps
- Swimming Pools
Fan mode (inc. fire operation) makes air handling a breeze, ideal for simple HVAC systems.
- Air Handling Units
- Ventilation Fans
- Circulating Fans
- Air Curtains
- Kitchen Extract

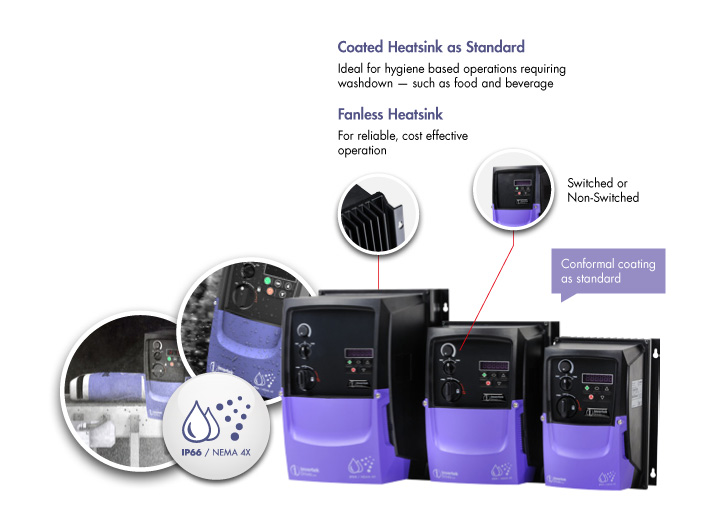

Install directly on your processing equipment and be sure of protection from dust and contaminants.
With a sealed ABS enclosure and corrosion resistant heatsink, the Optidrive E3 IP66 is ideal for high-pressure washdown applications.
Optidrive E3 IP66 Switched
Simply wire up the drive, turn the inbuilt potentiometer and the motor will start running – allowing immediate energy savings.
Saving energy cannot be easier than this!
Datasheet – 3 Phase 0.75KW IP 66 Frame Size 1
Optidrive E3 Specifications
